TSG Kitchen Cabinet Specifications

KITCHEN CABINET SPECIFICATIONS

Wall Cabinets

NOTE:  Not all items are available for all lines.

12" Depth



W0930

W1230

W1530

W1830

W2130



W0936

W1236

W1536

W1836

W2136



W0942

W1242

W1542

W1842

W2142

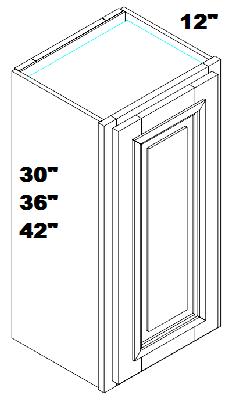

Wall - 09"W x 12"D x 30"H - 1 Door

Wall - 12"W x 12"D x 30"H - 1 Door

Wall - 15"W x 12"D x 30"H - 1 Door

Wall - 18"W x 12"D x 30"H - 1 Door

Wall - 21"W x 12"D x 30"H - 1 Door



Wall - 09"W x 12"D x 36"H - 1 Door

Wall - 12"W x 12"D x 36"H - 1 Door

Wall - 15"W x 12"D x 36"H - 1 Door

Wall - 18"W x 12"D x 36"H - 1 Door

Wall - 21"W x 12"D x 36"H - 1 Door



Wall - 09"W x 12"D x 42"H - 1 Door

Wall - 12"W x 12"D x 42"H - 1 Door

Wall - 15"W x 12"D x 42"H - 1 Door

Wall - 18"W x 12"D x 42"H - 1 Door

Wall - 21"W x 12"D x 42"H - 1 Door

       *30" & 36" Tall Cabinets have 2 shelves

*42" Tall Cabinets have 3 shelves

 12" Depth

*30" & 36" Tall Cabinets have 2 shelves

*42" Tall Cabinets have 3 shelves

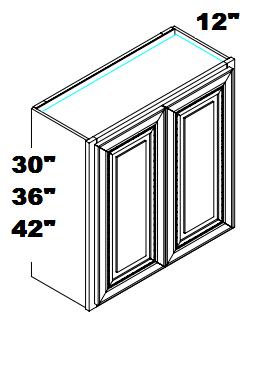

Wall - 24"W x 12"D x 30"H - 2 Door

Wall - 27"W x 12"D x 30"H - 2 Door

Wall - 30"W x 12"D x 30"H - 2 Door

Wall - 33"W x 12"D x 30"H - 2 Door

Wall - 36"W x 12"D x 30"H - 2 Door

Wall - 42"W x 12"D x 30"H - 2 Door

Wall - 48"W x 12"D x 30"H - 2 Door



Wall - 24"W x 12"D x 36"H - 2 Door

Wall - 27"W x 12"D x 36"H - 2 Door

Wall - 30"W x 12"D x 36"H - 2 Door

Wall - 33"W x 12"D x 36"H - 2 Door

Wall - 36"W x 12"D x 36"H - 2 Door



Wall - 24"W x 12"D x 42"H - 2 Door

Wall - 27"W x 12"D x 42"H - 2 Door

Wall - 30"W x 12"D x 42"H - 2 Door

Wall - 33"W x 12"D x 42"H - 2 Door

Wall - 36"W x 12"D x 42"H - 2 Door



*30" & 36" Tall Cabinets have 2 shelves

*42" Tall Cabinets have 3 shelves



Wall - 30"W x 12"D x 12"H - 2 Door

Wall - 33"W x 12"D x 12"H - 2 Door

Wall - 36"W x 12"D x 12"H - 2 Door

Wall - 24"W x 12"D x 15"H - 2 Door

Wall - 30"W x 12"D x 15"H - 2 Door

Wall - 33"W x 12"D x 15"H - 2 Door

Wall - 36"W x 12"D x 15"H - 2 Door

Wall - 21"W x 12"D x 18"H - 2 Door

Wall - 24"W x 12"D x 18"H - 2 Door

Wall - 30"W x 12"D x 18"H - 2 Door

Wall - 33"W x 12"D x 18"H - 2 Door

Wall - 36"W x 12"D x 18"H - 2 Door

Wall - 24"W x 12"D x 24"H - 2 Door

Wall - 30"W x 12"D x 24"H - 2 Door

Wall - 33"W x 12"D x 24"H - 2 Door

Wall - 36"W x 12"D x 24"H - 2 Door

Deep Wall Cabinets

24" Depth





W241824

W242424


W301524
W302424

W361224

W361524

W361824

W362424



WFP930

WFP936

WFP942

Wall Cabinet

Note: Side mount full extension drawer glides. Not soft closing.

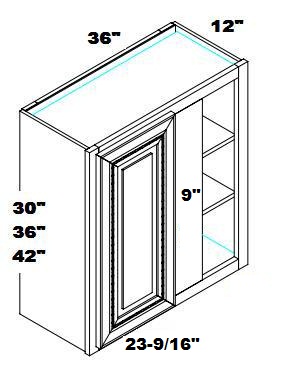

Wall Corner Cabinet

Blind Corner

WBLC3942-3630

WBLC3942-3636

WBLC3942-3642


Blind Corner 36"W x 30"H x 12"D*

Blind Corner 36"W x 36"H x 12"D*

Blind Corner 36"W x 42"H x 12"D*

*NOTE: max pull to 42" with 9" center board

Diagonal Corner

WDC2430

WDC2436

WDC2442

WDC2730

WDC2736

WDC2742

Diagonal Corner 24"W x 30"H - 12" side

Diagonal Corner 24"W x 36"H - 12" side

Diagonal Corner 24"W x 42"H - 12" side

Diagonal Corner 27"W x 30"H - 15" side

Diagonal Corner 27"W x 36"H - 15" side

Diagonal Corner 27"W x 42"H - 15" side

 12" Depth

WES0530

WES0536

WES0542

   11.25"W x 5"D x 30"H - 2 Shelves

   11.25"W x 5"D x 36"H - 2 Shelves

   11.25"W x 5"D x 36"H - 3 Shelves

WEF1230

WEF1236

WEF1242

 11.25"D x 12"W x 30"H - 2 Shelves

   11.25"D x 12"W x 36"H - 2 Shelves

   11.25"D x 12"W x 36"H - 3 Shelves

 Wall Cabinet with Small Drawers

W3630BGD

W3636BGD

W3642BGD

36"W x 12"D x 30"H

36"W x 12"D x 36"H

36"W x 12"D x 42"H

   *6 -  6" H drawers across bottom are included in the overall height.
Doors have glass panels

Glass and Mullion Glass Doors

  W1530GD - for W1530 wall cabinet
  W1830GD - for W1830 wall cabinet
 W3030GD - for W3030 wall cabinet
  W3630GD - for W3630 wall cabinet
  W1536GD - for W1536 wall cabinet
  W1836GD - for W1836 wall cabinet
  W3036GD - for W3036 wall cabinet
  W3636GD - for W3636 wall cabinet
  W1542GD - for W1542 wall cabinet
  W1842GD - for W1842 wall cabinet
  W3042GD - for W3042 wall cabinet
  W3642GD - for W3642 wall cabinet
  WDC2430GD - for WDC2430 wall cabinet
  WDC2436GD - for WDC2436 wall cabinet
  WDC2442GD - for WDC2442 wall cabinet
  WDC2736GD - for WDC2736 wall cabinet
  WDC2742GD - for WDC2742 wall cabinet

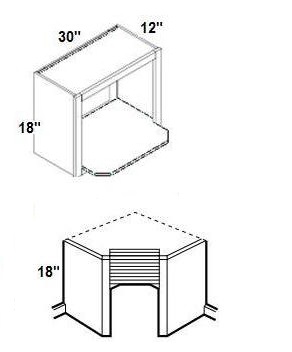

Micro/Wine

MWO3018

TAG1224

W3018WR

W3015PL

Microwave Cabinet  30"W X 12"D X 18"H

Note: Opening 27"W x 14.5"
(without shelf)
Shelf is 18"D x 3/4"T

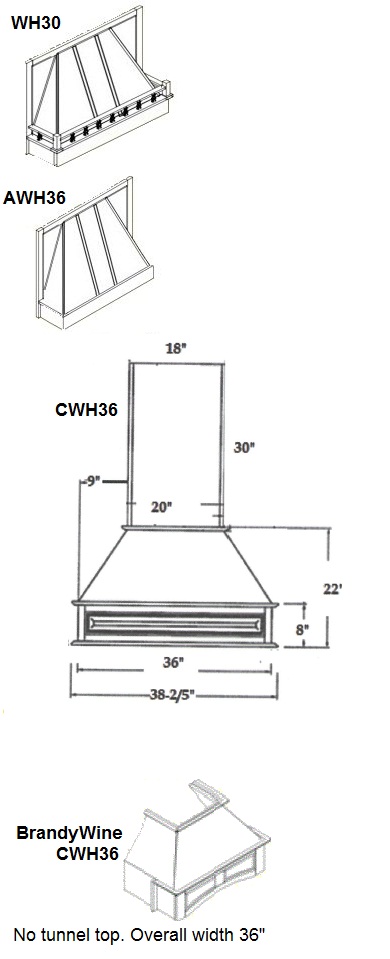

Wooden

WH30

AWH36

CWH36

CWH36

Wood Hood 30"W x 8"D x 24"H

Wood Hood 36"W x 8"D x 24"H

Wood Hood 38-2/5"W x 20-1/2"D x 22+30"H

(Top is trimable)

Brandy Wine Wood Hood 30"W x 8"D x 24"H

 Angle Wall

AW30

AW36

AW42

Angle Wall Cabinet 12"D X 30"H

Angle Wall Cabinet 12"D X 36"H

Angle Wall Cabinet 12"D X 42"H

Box Base

B09 Box R




BFP09


B09 Box

9"W x 24"D x 34.5"H - 4 Spice drawers no glides.
(has rope detail on fronts)

Regular Base

B09

B12

B15

B18

B21

9"W x 24"D x 34.5"H Base - 1 Door 1Dwr

12"W x 24"D x 34.5"H Base - 1 Door 1Dwr


15"W x 24"D x 34.5"H Base - 1 Door 1 Dwr

18"W x 24"D x 34.5"H Base - 1 Door 1 Dwr

21"W x 24"D x 34.5"H Base - 1 Door 1 Dwr

B24

B27

B30

B33

B36

24"W x 24"D x 34.5"H Base -2 Door 1 Dwr

 27"W x 24"D x 34.5"H Base - 2 Door 1 Dwr

30"W x 24"D x 34.5"H Base - 2 Door 1 Dwr

33"W x 24"D x 34.5"H Base -2 Door 2 Dwr

36"W x 24"D x 34.5"H Base - 2 Door 2 Dwr

Sink Base Cabinet

SB27



SB30

SB33


SB36





27"W x 34.5"H Sink Base 2 Doors, 1Header



30"W x 34.5"H SinkBase 2 Doors, 2 Headers*


33"W x 34.5"H Sink Base 2 Doors, 2 Headers

36"W x 34.5"H SinkBase 2 doors, 2 Headers*

DB12

DB15

DB18

DB21

DB24

DB30

DB36

12"W x 24"D x 34.5"H - 3 Drawers

15"W x 24"D x 34.5"H - 3 Drawers*

18"W x 24"D x 34.5"H - 3 Drawers*

21"W x 24"D x 34.5"H - 3 Drawers

24"W x 24"D x 34.5"H - 3 Drawers

30"W x 24"D x 34.5"H - 3 Drawers

36"W x 24"D x 34.5"H - 3 Drawers

Corner Base Cabinets

Lazy Susan / Easy Reach

LS3309

LS3309S


LS3612

33"W x 24"D Lazy Susan with 2 revolving shelves
(Bi-fold doors 9"each)

33"W x 24"D Easy Reach with fixed shelf
(Bi-fold doors 9"each)

36"W x 24"D Lazy Susan with 2 revolving shelves
(Bi-fold doors 12" each)


Corner Base Cabinets

Blind Corner Base

BBLC39/4236

BBLC42/4539



 BBLC45/4842

36"W x 24"D x 34.5"H  Blind Corner
1 door, 1 drawer
(Must Pull 39" to 42")

Corner Base Front

BDCF36K-FL

Diagonal Corner Sink

BDCF36

36"W x 24"D Diagonal Sink Base

 Base End Shelves

BES24


BEF24


(reversible - install toe kick)


Corner Base Cabinets

AB24

 Tall Cabinets

WP1584
WP1590
WP1596

WP1884
WP1890
WP1896

WP2484
WP2490
WP2496

Pantry 18"W x 24"D x 84"H - 2 door
Pantry 18"W x 24"D x 90"H - 2 door
Pantry 18"W x 24"D x 96"H - 2 door

Pantry 24"W x 24"D x 84"H - 4 door
Pantry 24"W x 24"D x 90"H - 4 door
Pantry 24"W x 24"D x 96"H - 4 door


* 1 fixed & 3 adjustable shelves

*BrandyWine  has 1 fixed & 4 adjustable shelves

 Tall Cabinet

OC3384

OC3390

OC3396

 33"W x 24"D x 84"H - 2 door, 2 drawer**

 33"W x 24"D x 90"H - 2 door, 2 drawer**

**Opening 32-1/2" x 31-9/16"

Brandy Wine opening - 24"W x 24"H

Accessories

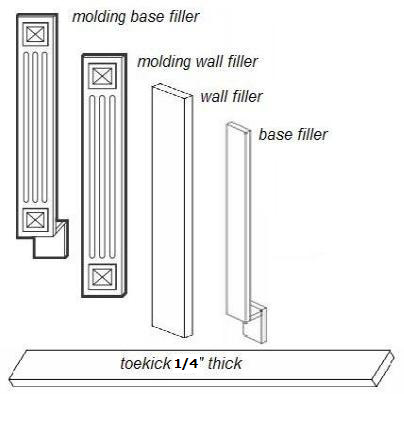

Fillers

BF6

WF3
WF6

WF336
WF342
WF384
WF396

TK8

VA696

Base Filler 3" x 34-1/2" x 3/4T

Base Filler 6" x 34-1/2" x 3/4T

Wall Filler 3" x 30" x 3/4"T
Wall Filler 6" x 30" x 3/4"T

Wall Filler - 3" x 36" x 3/4"T
Wall Filler - 3" x 42" x 3/4"T
Wall Filler - 3" x 84" x 3/4"T
Wall Filler - 3" x 96" x 3/4"T

Toe Kick - 4.5" x 8' long

Filler/Valance - 6" x 96" x 3/4"T

Molding

CM96
CM96-4


CM96C-4


CM96D-4

CM96E-4

LRM8



TLRM8


SC5


SC3-1


SC4

Crown Molding - 2 1/2" x 96"
BrandyWine Crown Molding - 2 1/4" x 96"
Crown Molding - 4 1/2" x 96"
BrandyWine Crown Molding - 3-1/8" x 96"

Crown Rope Molding - 4" x 96"

Crown Dentil Molding - 4" x 96"

Shaker Crown Molding - 4" x 96"
Bamboo Crown Molding - 4" x 96"

Under Wall Cabinet molding -1" x 1.5" x 96" (LRM8)


Under Wall Cabinet Molding 2.25" x 1.5" x 96" (TLRM8)



Outside Corner Molding 3/4" x 3/4" x 96"


Scribe Molding 3/4" x 1/4" x 96"


Inside Cnr Molding 3/4" x 3/4" x 96"

VAS48

CTVAL36
CTVAL48

VAD36
VAD42
VAD48

Sculptured Valance - 4.5" W x  48" L

Country Valance - 5"W x 36"L
Country Valance - 5"W x 48"L

Raised Panel Valance - 12"W x 36"L
Raised Panel Valance - 12"W x 42"L
Raised Panel Valance - 12"W x 48"L

Decorative Base and Wall End Panels

EPW1230D

EPW1236D

EPW1242D

EPB24D

DOWD1212

DOWD1230

DOBD1212

Wall End Panel - 11 1/2"W x 29 3/8"H

Wall End Panel - 11 1/2"W x 35 3/8"H

Wall End Panel - 11 1/2"W x 41 3/8"H

Base End Panel - 23 1/2"W x 29 3/8"H

Wall End Panel - 11 1/2"W x 11 1/2"H

Wall End Panel - 11 1/2"W x 29 3/8"H

Base End Panel - 23 1/2"W x 29 3/8"H

Panels

Finished Panels

BEP334

DWR

REP2484-3

REP2496-3

REP2484

REP2496

WP-1230

BP4896 &
FEP4896

FEP1242

FEP2435

24" x 34 1/2" x 3" Dishwasher End Panel

24" x 34 1/2" x 3" Dishwasher End Panel

24" x 84" x 3" Refrigerator End Panel

24" x 96" x 3" Refrigerator End Panel

24" x 84" Refrigerator End Panel

24" x 96" Refrigerator End Panel

12"W X 30"H Wall Panel Skin

 48" x 96" x 1/4" Finished Back Panel
(1 side finished, vertical grain)

GR48

Leg81

TP3-WF34


Corbel54

Corbel55

Corbel56

Plate Rail Molding - 48"L x 2-1/8"W

Contemporary Leg - 34-1/2"H x 3" x 1-1/2"


Traditional Leg - 34-1/2"H x 3" x 3"
(includes a wall filler 34-1/2")


Traditional Corbel54 - 6"H x 4"W

Contemporary Corbel55 - 6"H x 4"W

Fancy Corbel56 - 6"H x 4"W
