Typical Kitchen Cabinet Specifications
KITCHEN CABINET SPECIFICATIONS | |||
Wall Cabinets | NOTE: Not all items are available for all lines. | ||
| LINE DRAWINGS (presented in architectural orthogonal view) | CODE | DESCRIPTION | |

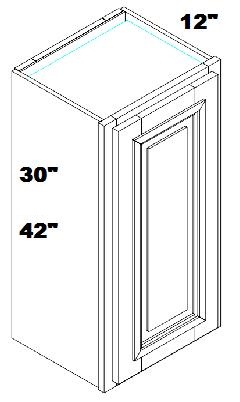

| Wall - Single Door | 12" Depth | ||
 |
| Wall - 09"W x 12"D x 30"H - 1 Door Wall - 12"W x 12"D x 30"H - 1 Door Wall - 15"W x 12"D x 30"H - 1 Door Wall - 18"W x 12"D x 30"H - 1 Door Wall - 21"W x 12"D x 30"H - 1 Door
| |

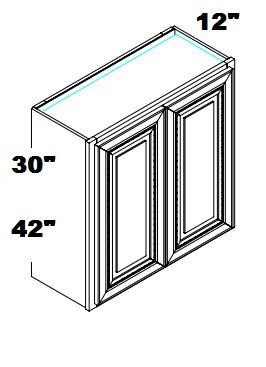

| Wall - Double Door | 12" Depth | ||
|

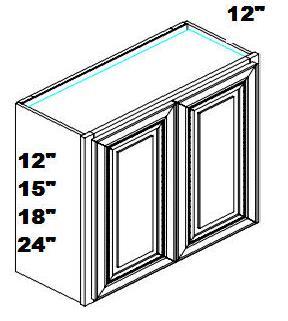

| W2430 W2730 W3030 W3330 W3630 W4230 W2442 W2742 W3042 W3342 W3642 W4242 *** W3012 W3612 W2415 W3015 W3315 W3615 W3018
|
| |

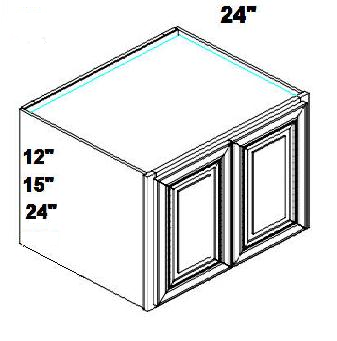

Deep Wall Cabinets | 24" Depth | ||
 |
| Wall - 30"W x 12"H x 24"D - 2 Door Wall - 33"W x 12"H x 24"D - 2 Door Wall - 33"W x 15"H x 24"D - 2 Door Wall - 36"W x 15"H x 24"D - 2 Door Wall - 33"W x 24"H x 24"D - 2 Door Wall - 36"W x 24"H x 24"D - 2 Door | |
Wall Corner Cabinet |

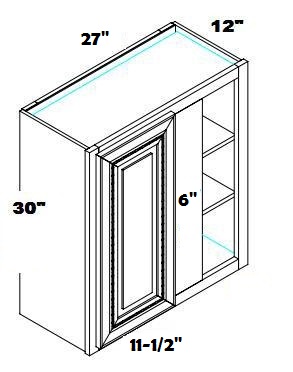

| Blind Corner | |
 |
WBC2730 |
*NOTE: max pull to 30" with 6" center board | |

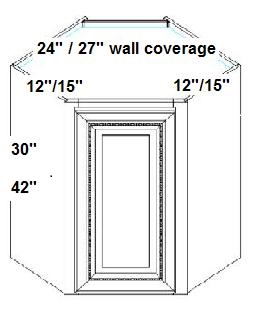

| Wall Corner Cabinet | Diagonal Corner | ||
|
WDC2430 WDC2442 WDC2742 |
Diagonal Corner 24"W x 30"H - 12" side Diagonal Corner 24"W x 42"H - 12" side Diagonal Corner 27"W x 42"H - 15" side | |
| Decorator Doors | Mullion Doors* | ||
 |
W1530MD |
W1530MD - for W1530 wall cabinet *not available in Amber Shaker (does not include glass) | |

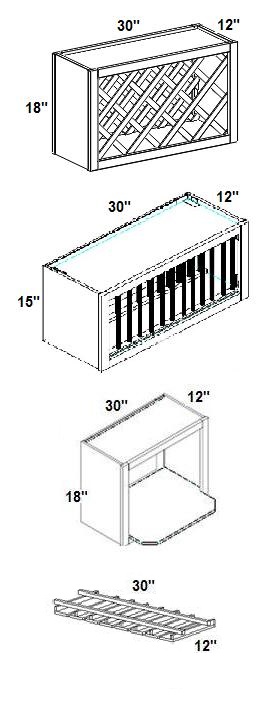

| Specialty Cabinet | Micro/Wine | ||
 |
WR3018
PR3015
MC3018
SGH30 |
Wine Rack 30"W x 12"D x 18"H
Microwave Cabinet 30"W X 12"D X 18"H | |
Base Cabinets | |||
| Single Door Base | Regular Base | ||
 |
|
* not available in Amber Shaker | |
| Double Door Base | |||
 |
B27 B33 B42 |
27"W x 24"D x 34.5"H Base - 2 Door 1 Dwr 30"W x 24"D x 34.5"H Base - 2 Door 2 Dwr 33"W x 24"D x 34.5"H Base -2 Door 2 Dwr 36"W x 24"D x 34.5"H Base - 2 Door 2 Dwr 42"W x 24"D x 34.5"H Base - 2 Door 2 Dwr
| |
| Sink Base Cabinet | |||
 |
SB30
SB42 SB60 |
30"W x 34.5"H Sink Base 2 Doors, 2 Headers 36"W x 34.5"H Sink Base 2 Doors, 2 Headers
60"W x 34.5"H Sink Base 4 doors, 2 Headers, 2 Dwrs
| |
| Drawer Packs | Bank of Drawers | ||
|
|
DB15 DB18 DB21 DB30
|
15"W x 24"D x 34.5"H - 3 Drawers 21"W x 24"D x 34.5"H - 3 Drawers 30"W x 24"D x 34.5"H - 3 Drawers
| |
| Corner Base Cabinets | Lazy Susan / Easy Reach | ||
|
|
(Bi-fold doors 10-3/16" each) | |
| Corner Base Cabinets | Blind Corner Base | ||
 |
BBC42
|
These cabinets are reversible and can be used left or right | |
| Corner Base Cabinets | Angle Base | ||
 |
BC24
| Angle Base Cabinet 24"W x 18.5"W x 24"D 2 Doors, 1 Adjustable Shelf | |
| Tall Cabinets | Pantry | ||
|
WP1884 WP2484 |
Pantry 18"W x 24"D x 84"H - 2 door Pantry 24"W x 24"D x 84"H - 4 door * 1 fixed & 3 adjustable shelves | |
| Tall Cabinet | Oven | ||
 |
OU302484 OU332490
|
30"W x 24"D x 84"H - 2 door, 2 drawer** 33"W x 24"D x 84"H - 2 door, 2 drawer* 33"W x 24"D x 90"H - 2 door, 2 drawer* **Opening 27"W x 22"H
| |
Accessories | |||
| Fillers | Wall and Base Fillers | ||
 | BF3 FS30 FS642 VA48 VAS48 TK8 |
Base Filler 3" x 34-1/2" x 3/4T Wall Filler 3" x 30" x 3/4"T Toe Kick 4-3/8" x 8' x1/4"T | |
| Molding | Molding & Trim | ||
 | CM8 LRM7
| Crown Molding - 3" x 96" Under Wall Cabinet molding -1" x 1.5" x 96" (LRM8)
| |
| Decorative Base and Wall End Panels | Door End Panels | ||
|
30DD 42DD BDD |
Wall End Panel - 11 1/2"W x 29 3/8"H Wall End Panel - 11 1/2"W x 41 3/8"H Base End Panel - 23 1/2"W x 29 3/8"H | |
| Panels | Finished Panels | ||
 |
BEP3L RP96 WEP12x42 3x4PAN EP24x35 |
24" x 34 1/2" x 3" Dishwasher End Panel 24" x 96" x 1-1/2" Refrigerator End Panel 12" X 42" x 3/16" Wall End Skin 3' x 4' x 1/4" Finished Plywood 24" x 35" x 3/16" Base End Skin | |
